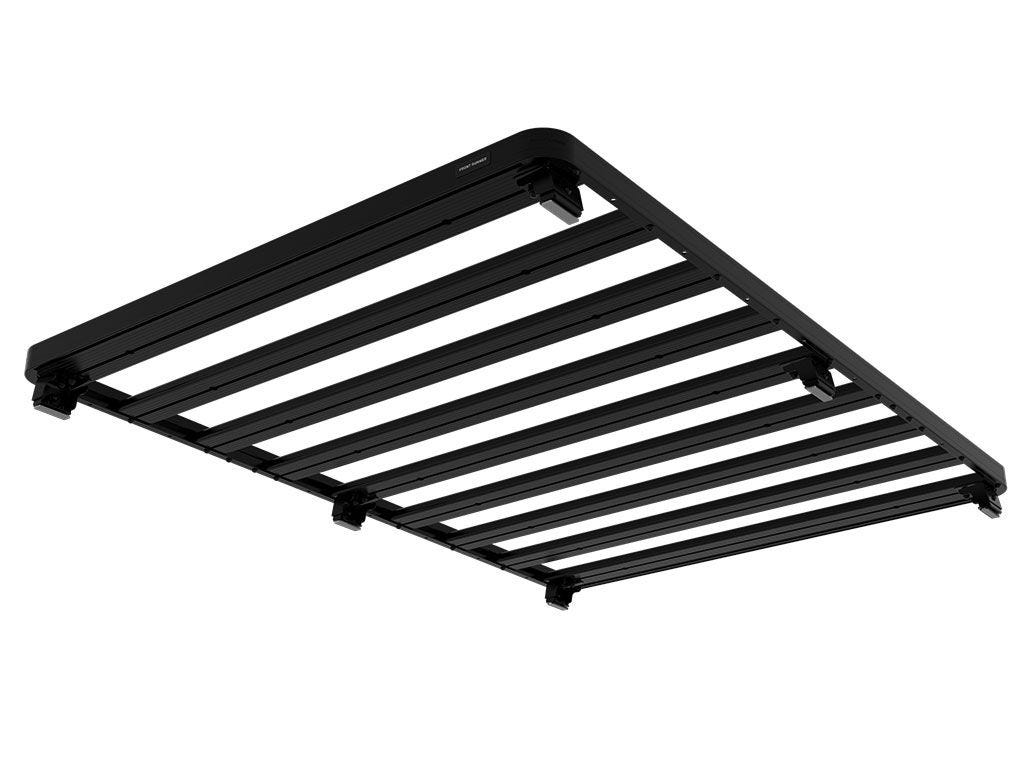

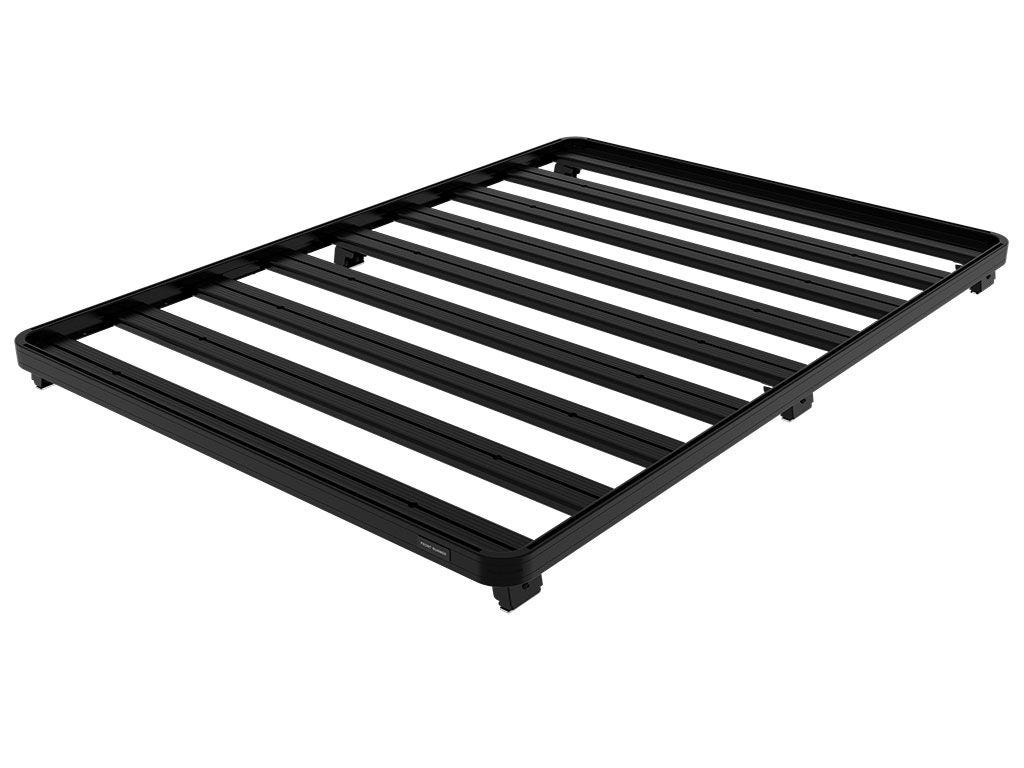

Bushtech Extra Cab CanopySlimline II Rack Kit / 1255mm(W) x 1762mm(L)

This kit creates a full-size rack on a Bushtech Extra Cab Canopy. This Slimline II cargo carrying rack kit contains the Slimline II tray (1255mm x 1762mm) and 6 mounting feet that fit into the OEM/Factory installed track. Installs easily into the existing factory/OEM roof tracks with no drilling required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRCA086T - Bushtech Extra Cab Canopy Slimline II Rack Kit / 1255mm(W) x 1762mm(L) - by Front Runner

Consisting of:
3x FASS024 - Foot Set / 50mm - 60mm
3x RRAC921 - Canopy Rack Kit Installation Set
1x RRSTD09 - SLII Tray - 1255mm(W)X1762mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 58.1kg (128.09lbs)

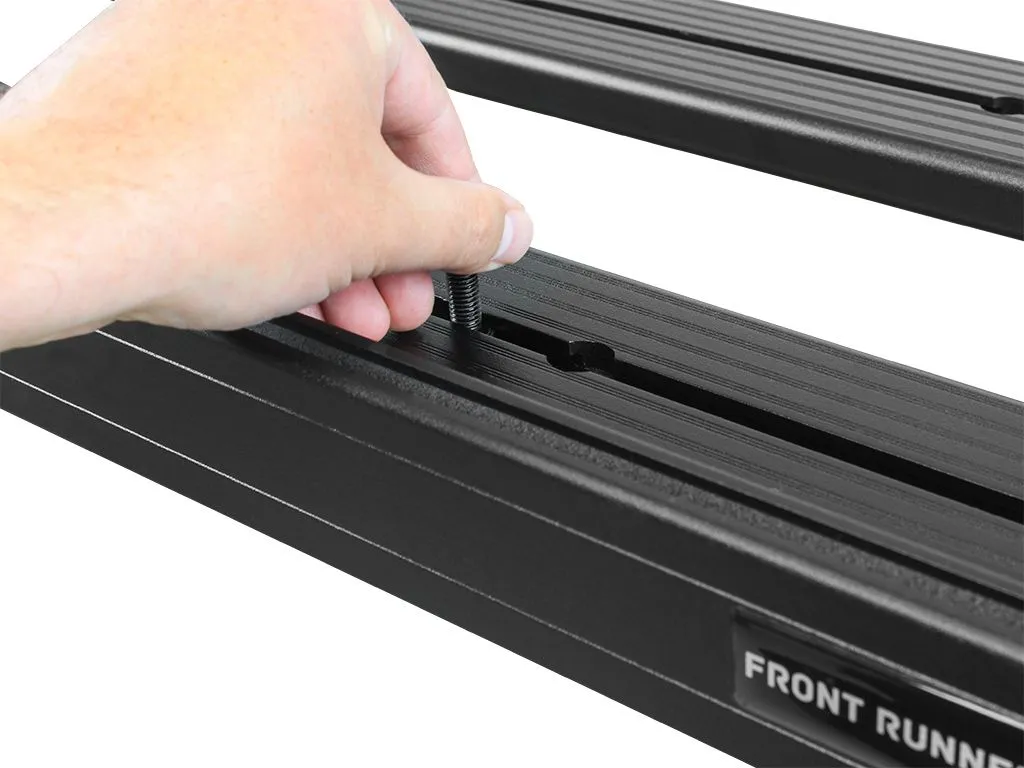

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 155mm (6")

Shipping Weight:
Weight: 29kg (64lbs)
