Truck Canopy or Trailer Slimline II Rack Kit / 1255mm(W) x 1358mm(L)

* For illustrative purposes only. Please refer to the specs tab for detailed information.

Truck Canopy or TrailerSlimline II Rack Kit / 1255mm(W) x 1358mm(L)

Name: Truck Canopy or Trailer Slimline II Rack Kit / 1255mm(W) x 1358mm(L)
Brand: Front Runner
SKU: KRCA021T
Price: 1225.00 USD
Availability: InStock

Front Runner

SKU: KRCA021T

Truck Canopy or Trailer Slimline II Rack Kit / 1255mm(W) x 1358mm(L)

$1,22500

$1,225.00

LIFETIME

WARRANTY*

FREE SHIPPING

TO THE LOWER 48 STATES*

Buy now pay later

From $56.52 per month

0% APR available for 6, 12, and 18-Month Financing*,

24-Month Financing available at $56.52/Month with Bread Pay.*

As low as $56.53/mo*

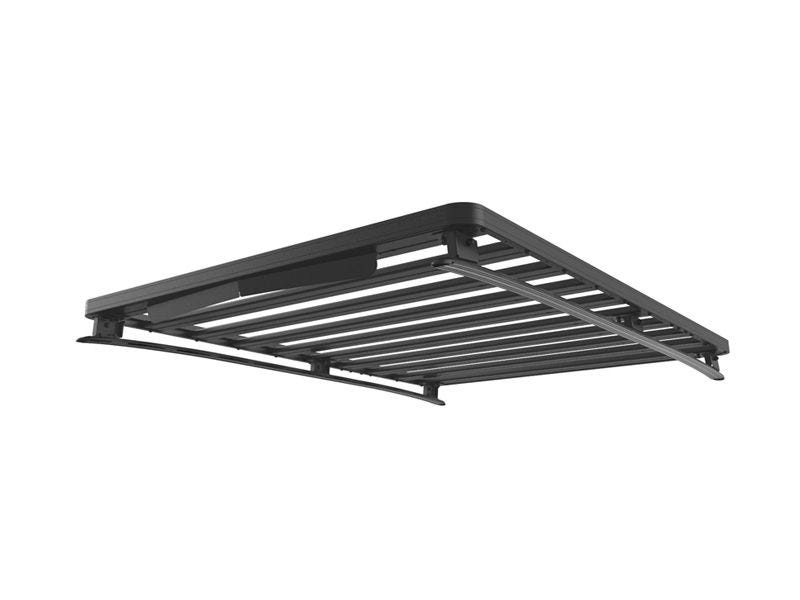

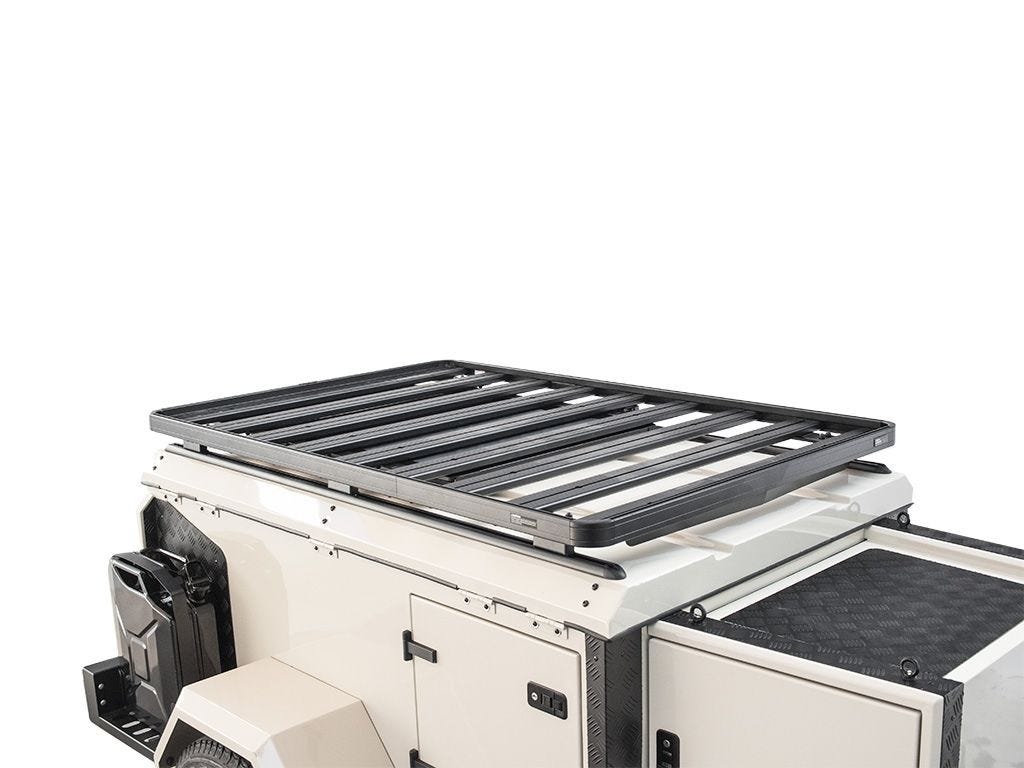

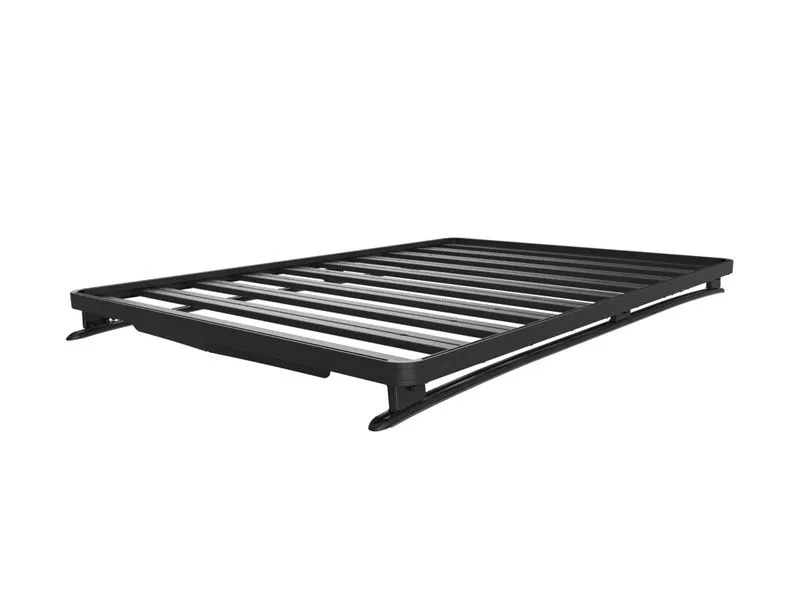

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1255mm/49.4" (W) x 1358mm/53.5" (L). The Slimline II Tray mounts to six (6) supplied Feet that slide in to the supplied Track. The 1400mm/55.1” long pair of tracks can be easily mounted to your canopy/shell or trailer.

See the Track installation instructions in the INSTALL tab for further details.

Our Truck Camper Shell/Canopy/Trailer Racks Are Modular, Lightweight, Strong And Come With A Lifetime Warranty. More Than 55 Rack Accessories Available.

Earn 1225 Explorer Rewards Points

In stock - Ready to ship

Proven gear and advice

You can trust

30 DAY MONEY BACK

GUARANTEE

BUILT OFF-ROAD

TOUGH

Proven gear and advice

You can trust

30 day money back

Guarantee

Built off-road

Tough

Info

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1255mm/49.4" (W) x 1358mm/53.5" (L). The Slimline II Tray mounts to six (6) supplied Feet that slide in to the supplied Track. The 1400mm/55.1” long pair of tracks can be easily mounted to your canopy/shell or trailer.See the Track installation instructions in the INSTALL tab for further details.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs

KRCA021T - Truck Canopy or Trailer Slimline II Rack Kit / 1255mm(W) x 1358mm(L) - by Front Runner

Consisting of:

3x FASS024 - Foot Set / 50mm - 60mm
1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)
1x TRAC002 - Universal Track / 1400mm(L)

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 26.89kg (59.28lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 440mm (17")

Length: 1730mm (68")

Height: 270mm (11")

Shipping Weight:

Weight: 29kg (64lbs)

Install

Installation Instructions for FASS024 (EN)
