Snugtop CanopySlimline II Rack Kit / Full Size Pickup Truck 5.5' Bed

This kit creates a full size rack on your Snugtop Canopy. The Slimline II Tray mounts to supplied Feet that slide in to the supplied Track. The track can be easily mounted to your Snugtop Canopy. See the Track installation instructions in the INSTALL tab for further details.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRCA083T - Snugtop Canopy Slimline II Rack Kit / Full Size Pickup 5.5' Bed - by Front Runner

Consisting of:

3 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTJ08 - Slimline II Tray - 1425mm(W) X 1560mm(L) - by Front Runner
1 x TRCA010 - Canopy Tracks / 1600mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 30.7kg (67.7lbs)

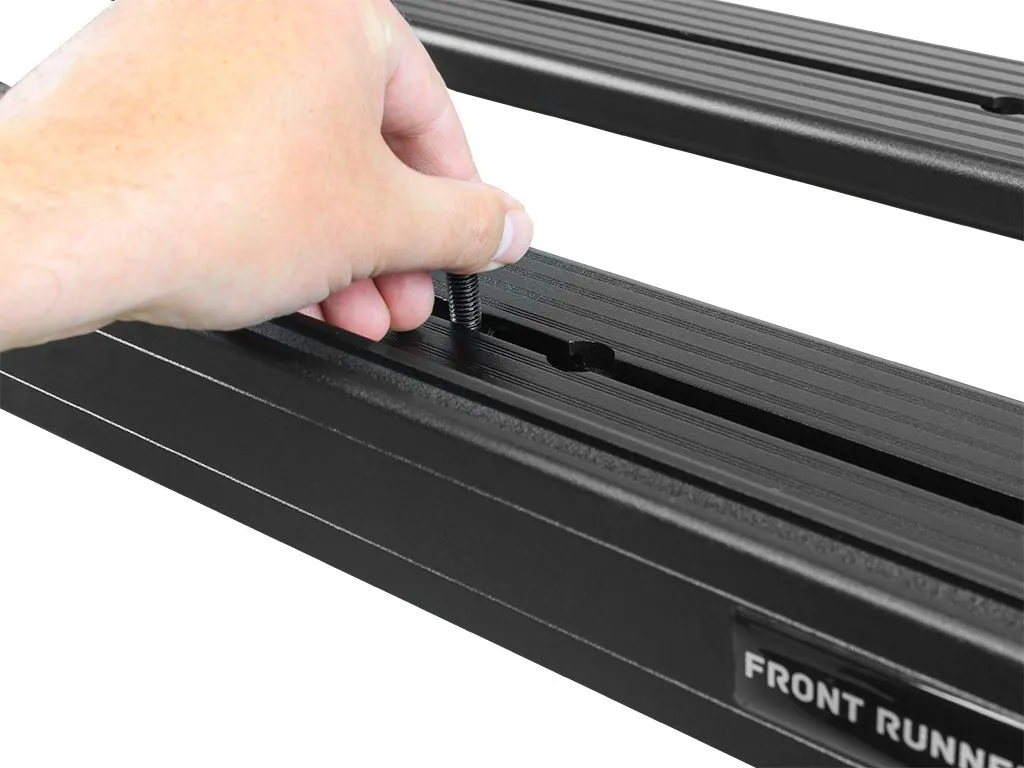

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 440mm (17.3")
Length 1730mm (68.1")
Height 260mm (10.2")

Shipping Weight:

Weight 31kg (68.3lbs)
