Mercedes-Benz Sprinter 144"/170" / L2/L3 / MWB/LWB Wheelbase w/o OEM Tracks (2006-Current)Slimline II Roof Rack Kit

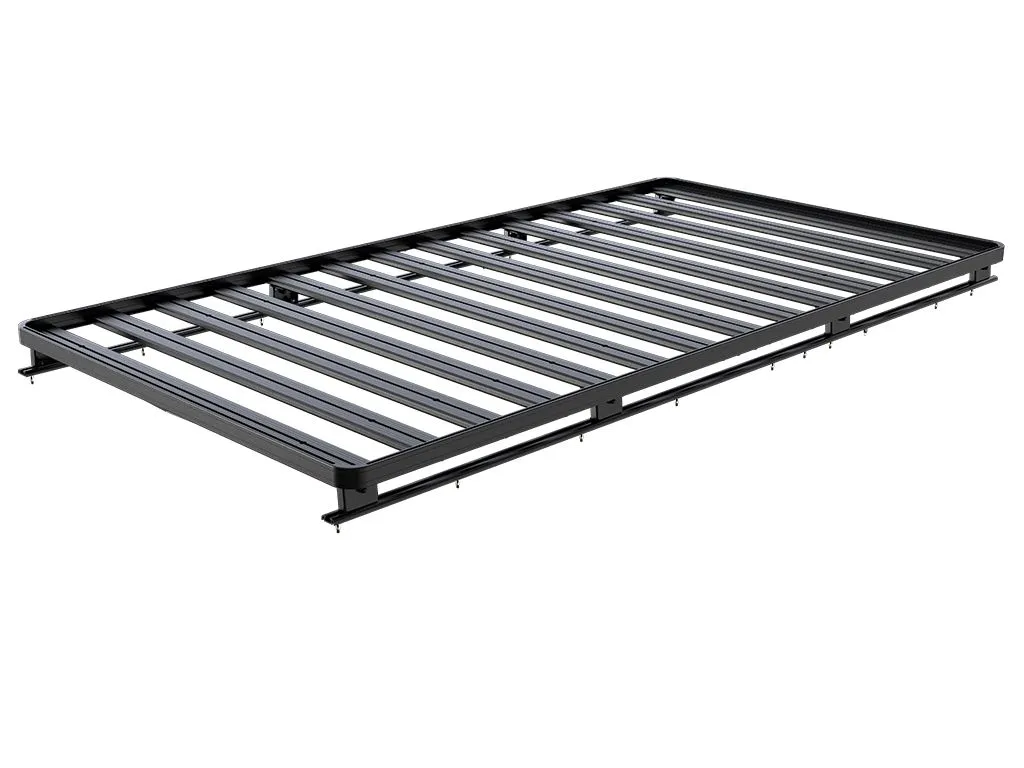

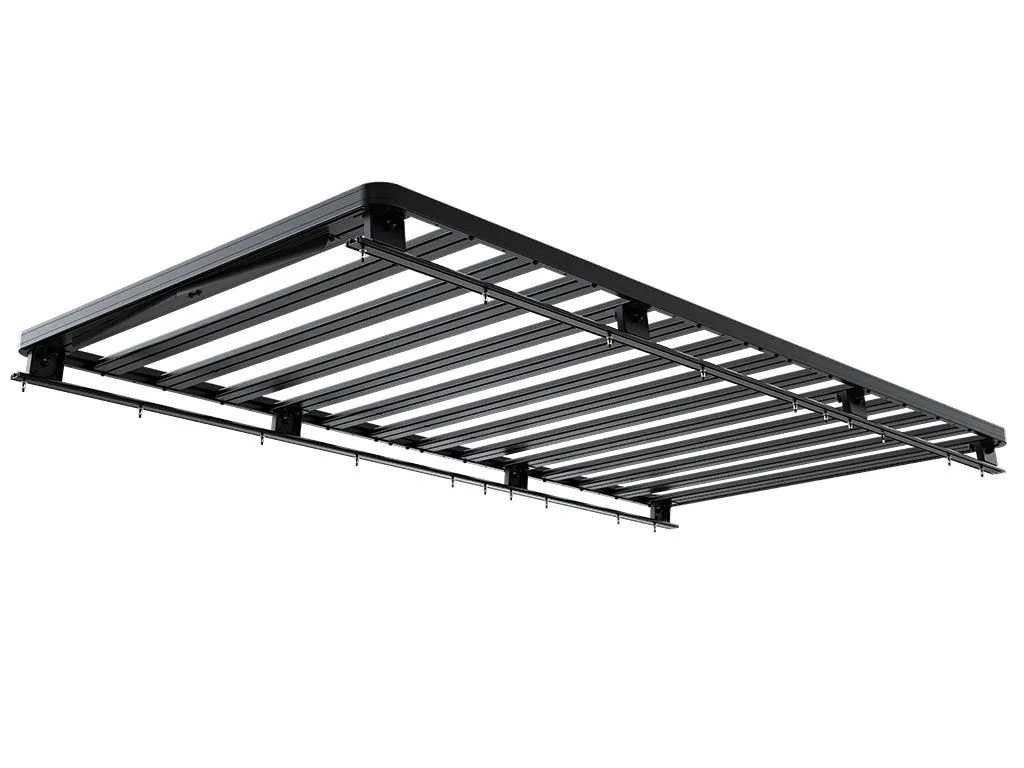

This 2772mm/109" long, full-size, Slimline II cargo carrying roof rack kit for the Mercedes-Benz Sprinter contains Slimline II Tray, Wind Deflector, 2 Tracks and 8 Feet. Drilling is required for installation. Fits the "Tall Roof" option only. Will not fit the "Standard/Low Roof".

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: Fits 2nd Gen (906) and 3rd Gen (907/910) Mercedes-Benz Sprinter Models.

KRMS008T - Mercedes-Benz Sprinter2 Gen(2006-Curr)SLII RR Kit/Tall

Consisting of:

4 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTM14 - Slimline II Tray - 1475mm(W) X 2772mm(L) - by Front Runner
1 x TRMS001 - Mercedes-Benz Sprinter (2006-Current) Tracks / 3082mm-4098mm(L) - by Front Runner
1 x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W) - by Front Runner

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 52.0kg (114.6lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 455mm (18.0")
Length: 1805mm (71.0")
Height: 255mm (10.0")

Shipping Weight:
52.7kg (116.0lbs)
