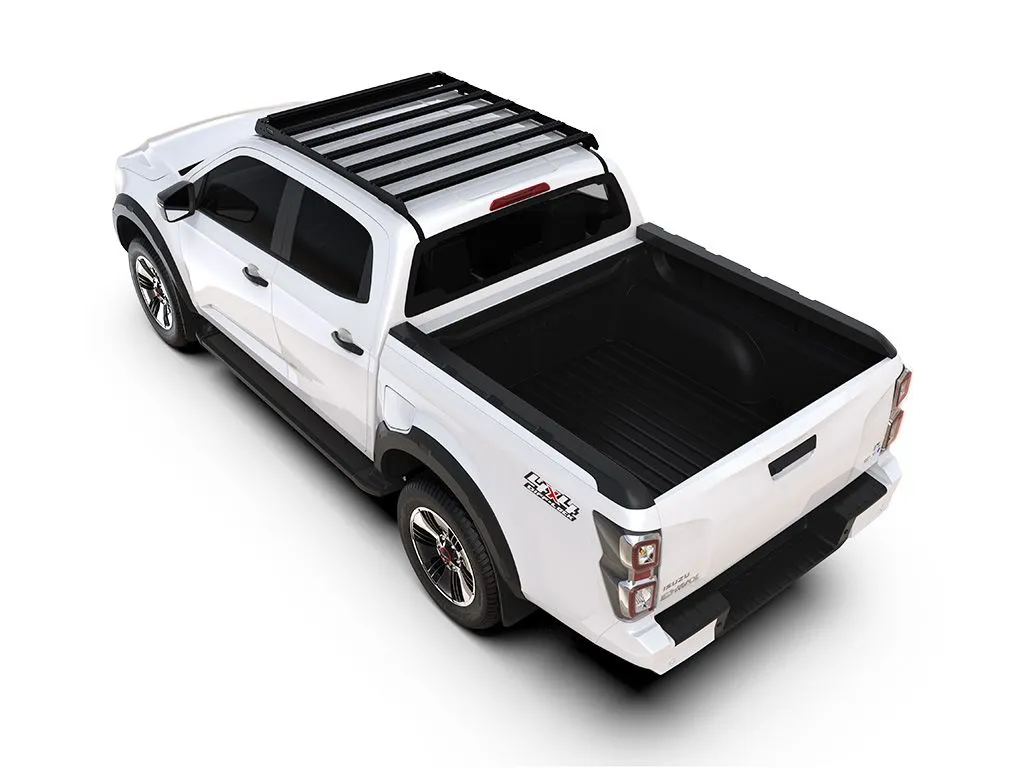

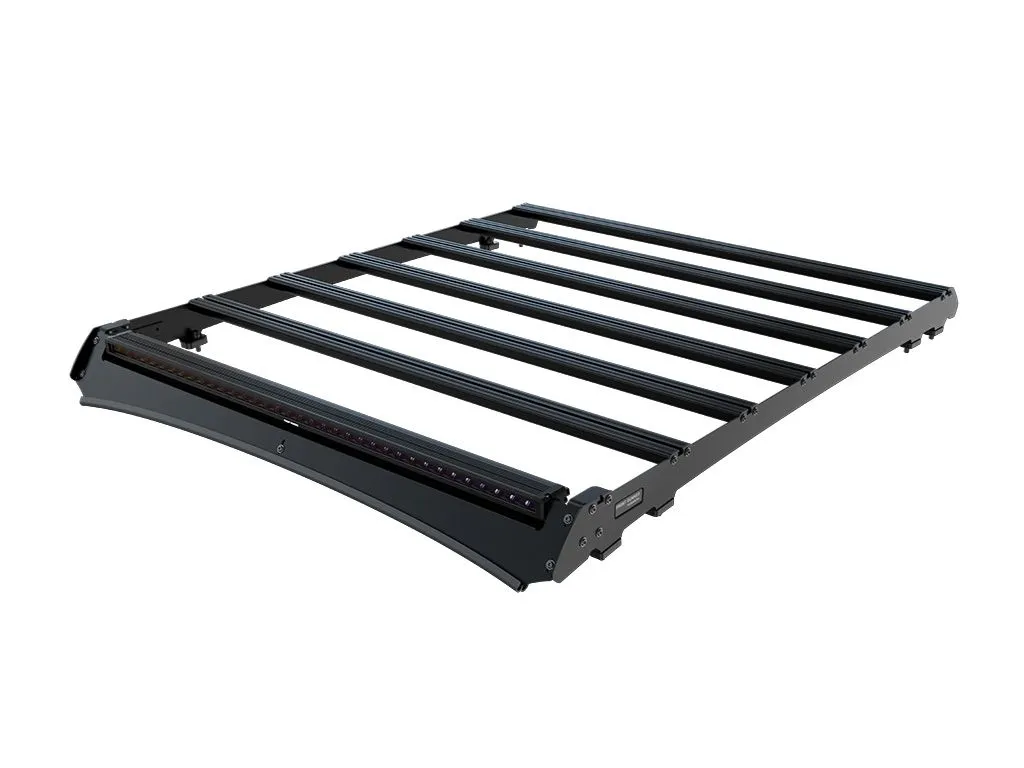

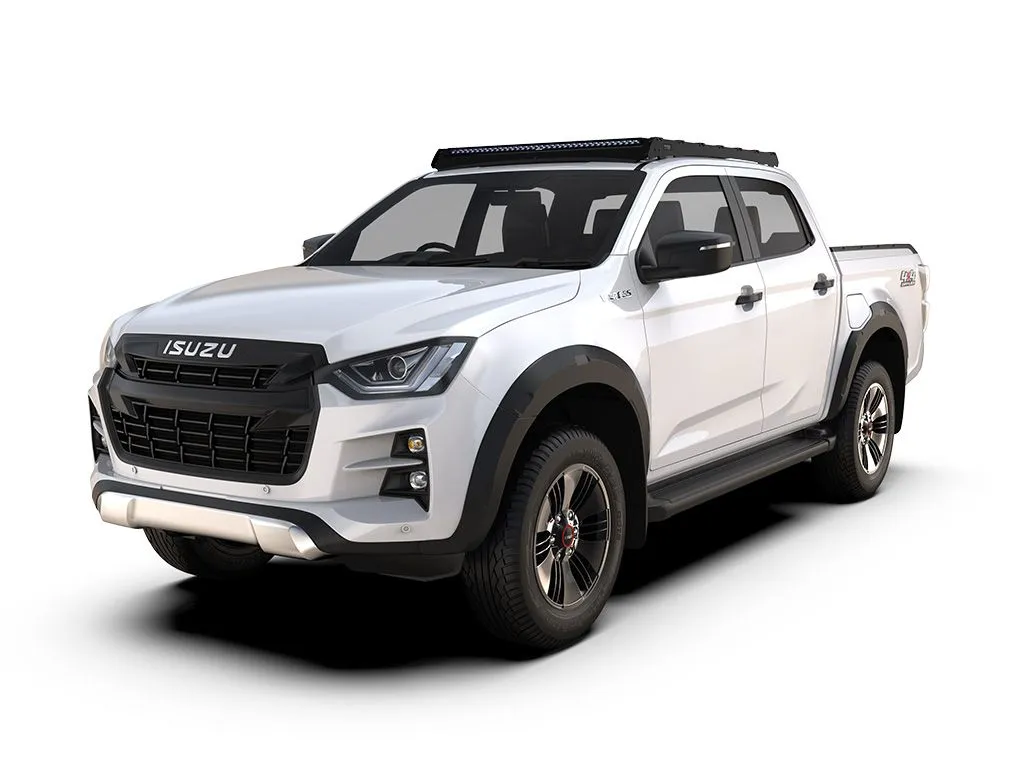

Isuzu D-Max (2020-Current) Slimsport Roof Rack Kit / Lightbar Ready

• This low-profile flat deck Slimsport rack has a load carrying area of 1410mm (55.5“) x 1141mm (44.9“).
• The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
• Easily add on the Rack Accessory Mounting Bracket Slimsport Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).
• Included in the Isuzu D-Max (2020-Current) Slimsport Rack is the Isuzu D-Max / Mazda BT50 (2020-Current) Slimsport Rack 40" Light Bar Wind Fairing that has a 40" cutout to allow the use of the 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).
• Note: Drilling may be required on selected Models.
• Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
• All Front Runner Racks are backed by a Limited Lifetime Warranty*

KSID002T - Isuzu D-Max (2020-Current) Slimsport Roof Rack Kit / Lightbar Ready

Consisting of:
1x KSID001 - Isuzu Dmax (2020-Current) Slimsport Tray
1x RRAC309 - Isuzu D-Max (20-current) Lightbar Windfairing

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 18.75kg (41.34lbs)

Assembled Rack Kit Dimensions:
1410mm (55.5") L x 1140mm (44.9") W x 125mm (4.9") H

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 220mm (9")

Shipping Weight:
Weight: 24kg (53lbs)
