Ineos Grenadier (2022-Current)Slimline II Roof Rack Kit

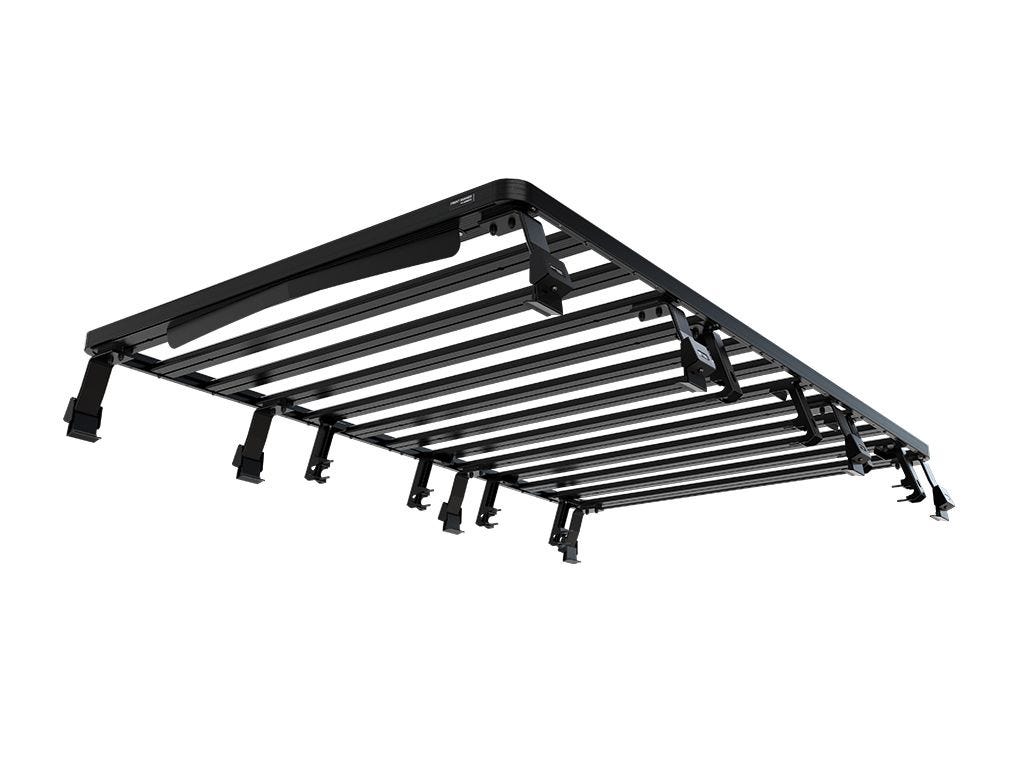

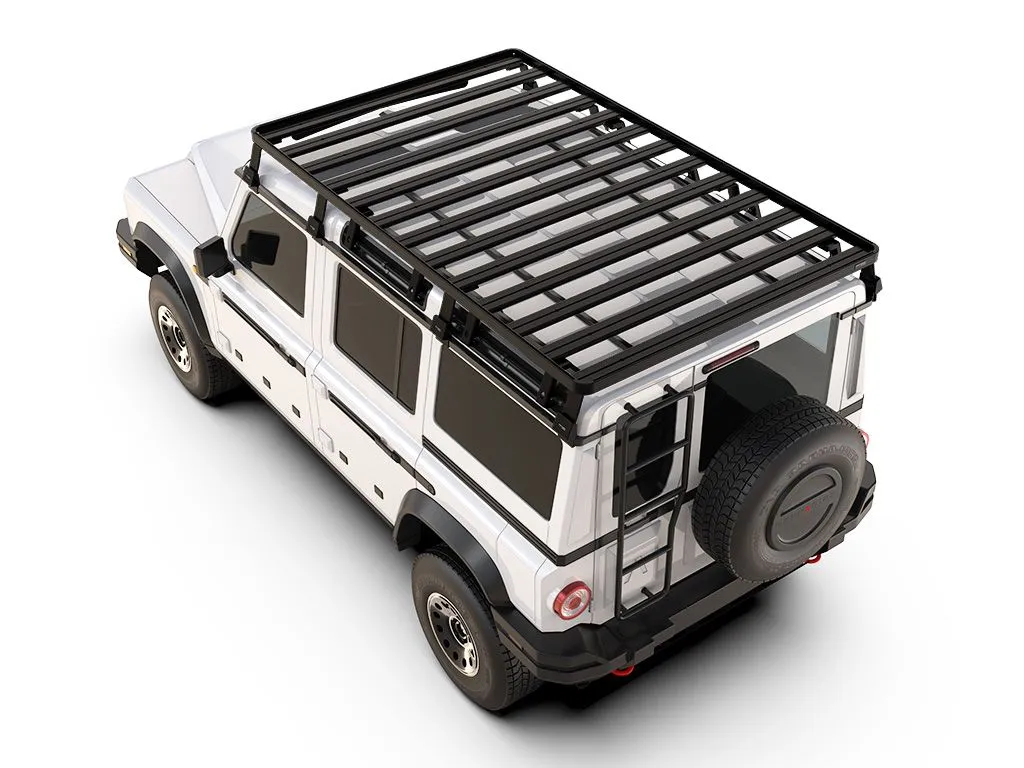

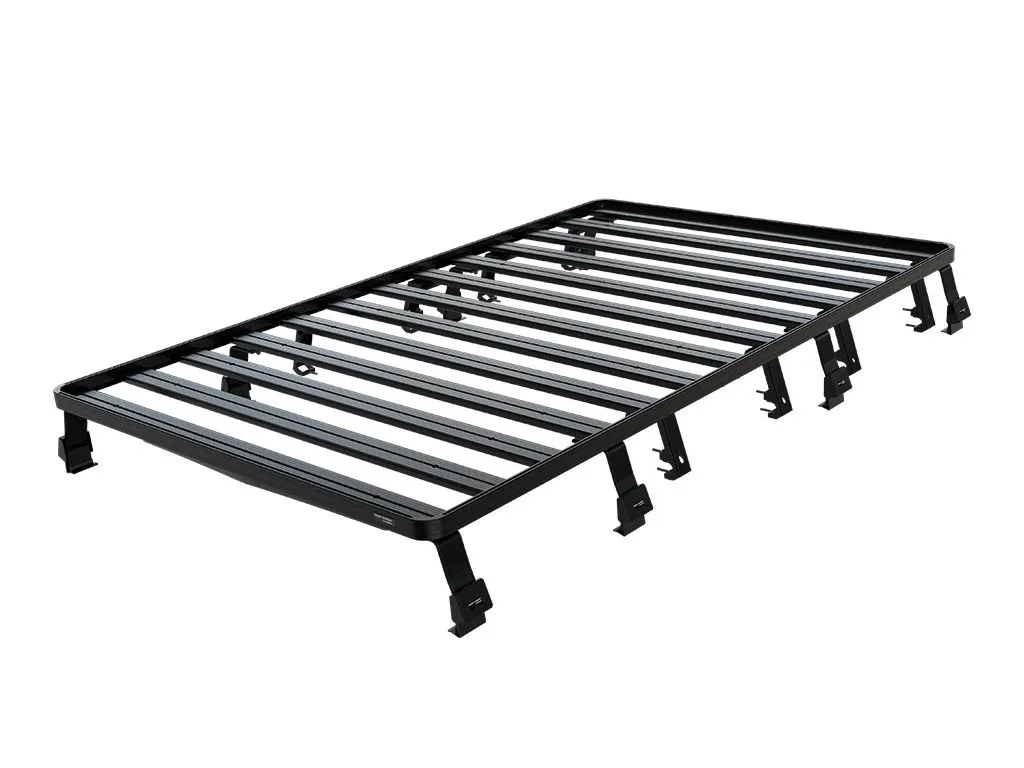

This 2570mm/109.1" long full-size Slimline II cargo carrying roof rack kit for the Ineos Grenadier contains Slimline II Tray and Wind Deflector, 8 Gutter Mount legs, as well as 8 Ineos Grenadier Grab Handle brackets for mounting the Tray to the vehicle. This kit has space for mounting one Front Runner table or other compatible accessories under the rack. It installs easily with no drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRIG006T - Ineos Grenadier (2022-Current) Slimline II Roof Rack Kit

Consisting of:
1x FAIG001 - Ineos Grenadier Grab Handle Brackets
4x LASS040 - Leg Spacer 10mm (Pair)
4x LASS047 - Ineos Grenadier Mounting Leg / 225mm (Pair)
1x RRSTP13 - SLII Tray - 1575mm(W)X2570mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 57.26kg (126.24lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1720mm (68")
Height: 330mm (13")

Shipping Weight:
Weight: 58kg (128lbs)
