LED Remote Control - by Front Runner
$ 34.95
excl. Tax, excl. Shipping
In stock - available for immediate delivery
Product Code
ECOM095
The Front Runner LED Remote Control Kit allows for the use of your Front Runner LED Flood Light by remote control.
- Proven gear and adviceYou can trust
- 30 day money backGuarantee
- Built off-roadTough

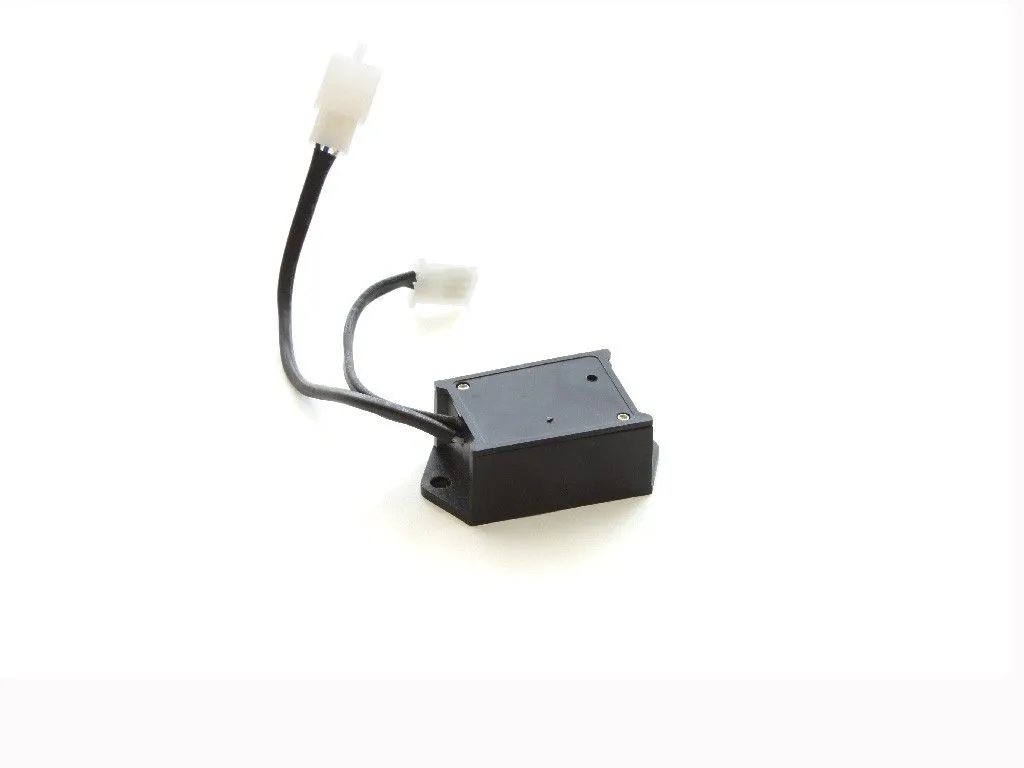

A small inductor connects to the LED Flood Light using the Wiring Harness which allows you to use your LED Flood Light from a distance by using a remote control. This remote control kit also adds additional functionality by allowing the LED Flood Light to flash as well as send out an SOS sequence.

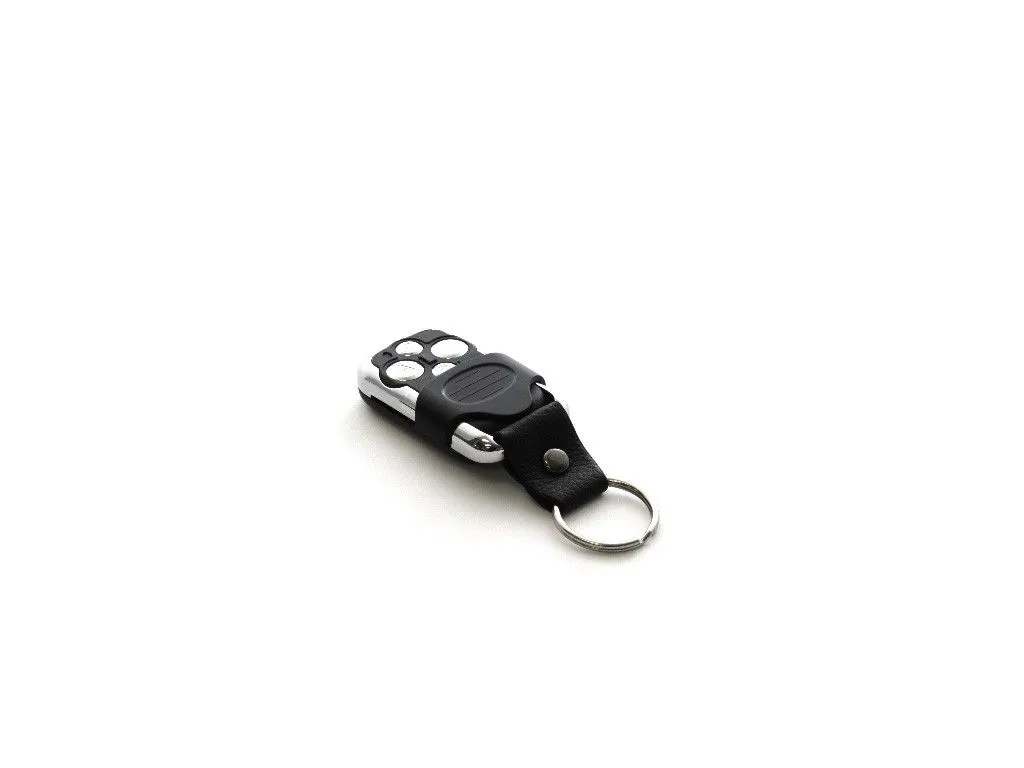

The remote control includes a strap with key-holder and has 4 buttons with different functionality. The kit also allows for 9 different flash patterns.
Consists of:
1x Remote Control
1x Inductor

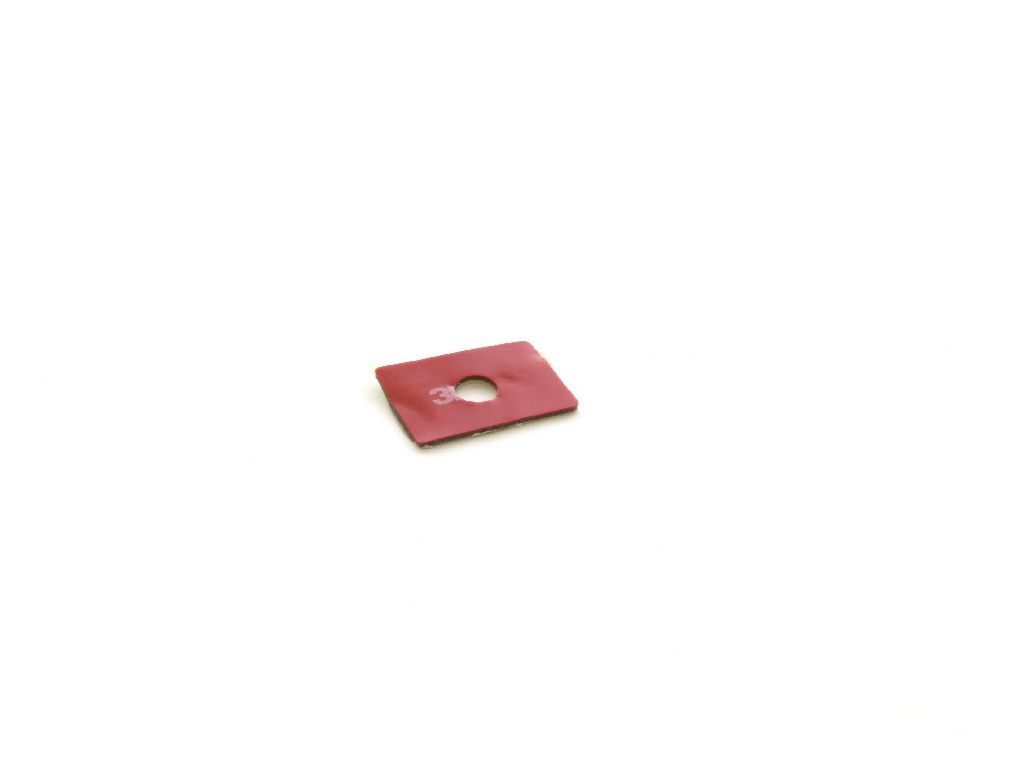

1x Double Sided Tape
Product dimensions:
60mm (2.4") L x 70mm (2.8") W x 30mm (1.2") H
Other specifications:
Input Voltage:
10-30V DC
Max Amp:
1.35A (the cable)
Frequency:
433MHZ
Effective distance:
50m
Waterproof:
Yes
1x Remote Control
1x Inductor
1x Double Sided Tape
Product dimensions:
60mm (2.4") L x 70mm (2.8") W x 30mm (1.2") H
Other specifications:
Input Voltage:
10-30V DC
Max Amp:
1.35A (the cable)
Frequency:
433MHZ
Effective distance:
50m
Waterproof:
Yes
*A PDF viewer is required to view the fitting instructions.
Write Your Own Review
Product Questions
I already have my lighting fitted and working but would like to incorporate this remote. Would I be able to remove the plugs and splice into my existing wiring?
Question by: Keith
Yes, the relay can be spliced into your existing wiring. If you have lights and a wiring harness from Front Runner, it should plug right in. If you have to splice it yourself, make sure all the leads are connected in the correct configuration.
Answer by: Front Runner
Dear sir, if I'm not using your product Wiring Harness , how to connect the difference colour wire from battery-to-buttom-relay.
Thanks
Rocky Lam
Question by: Rocky Lam
We recommend using our wiring Harness ( ECOM103). This will be the safest option and simplify the installation.
Answer by: Front Runner
Is the wireless communication done via IR or radio? Does this kit work with any 12V lights?
Question by: Dan
The transmitter is radio. We have only tested it with 12v LED lighting, which has a low amp draw. I imagine any 12v signal could be used, but I am not aware of the load restrictions. Thank you
Answer by: Front Runner
