Ford Ranger T6.2 Wildtrak/Raptor (2022-Current)Slimline II Load Bed Rack Kit

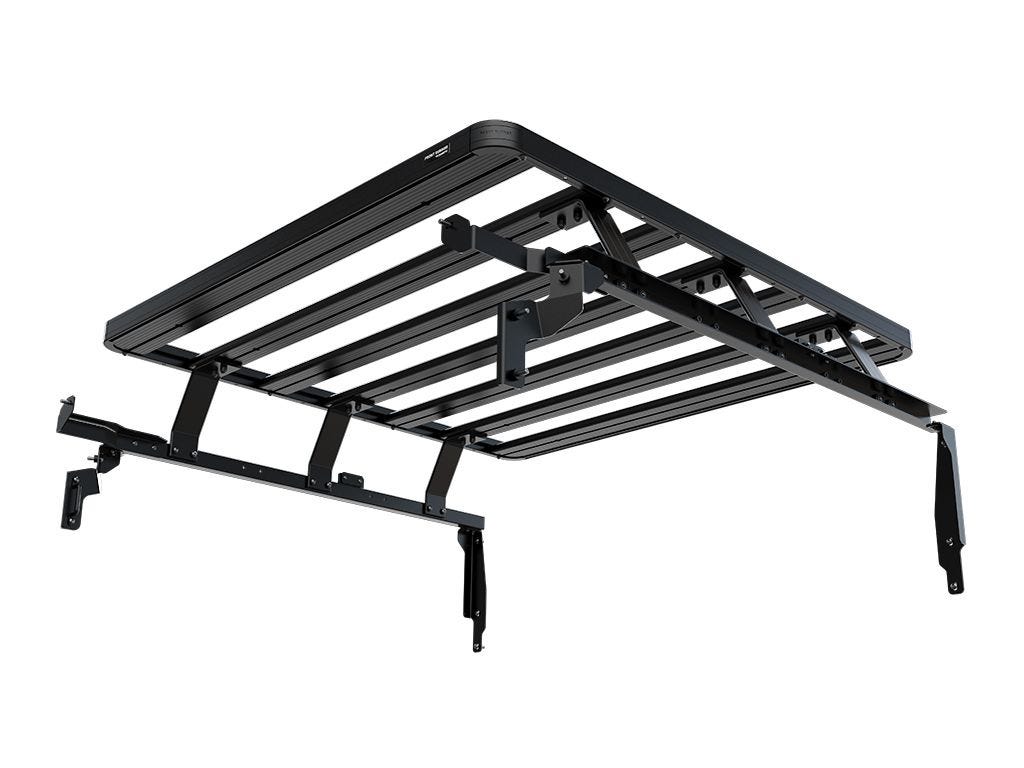

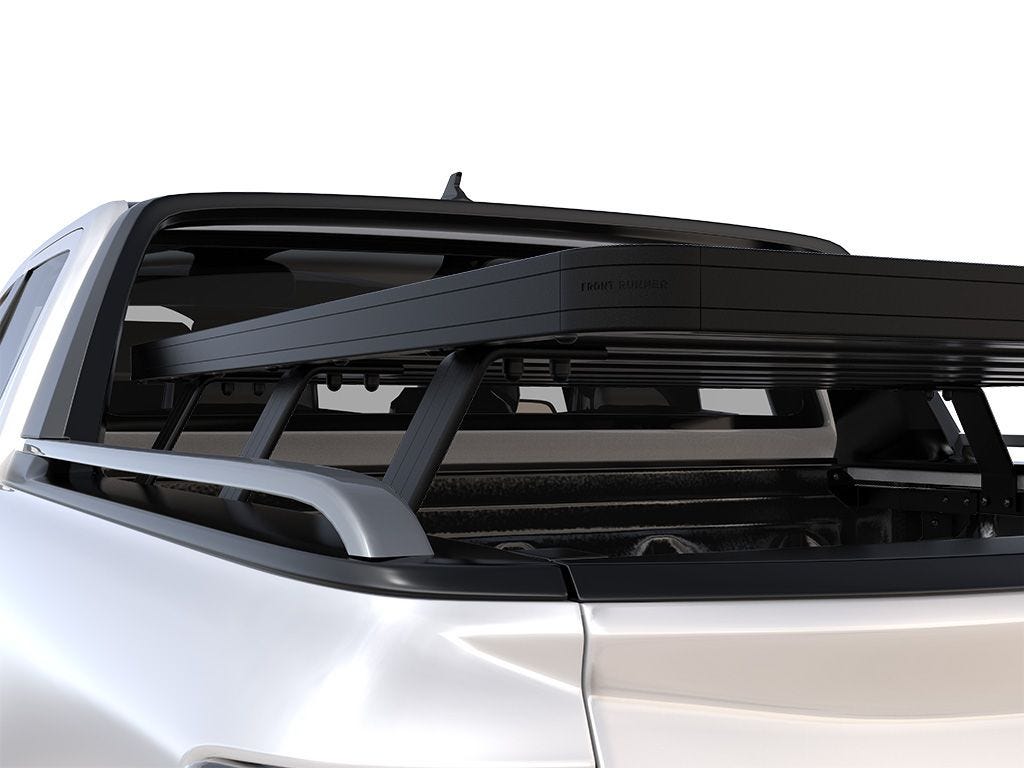

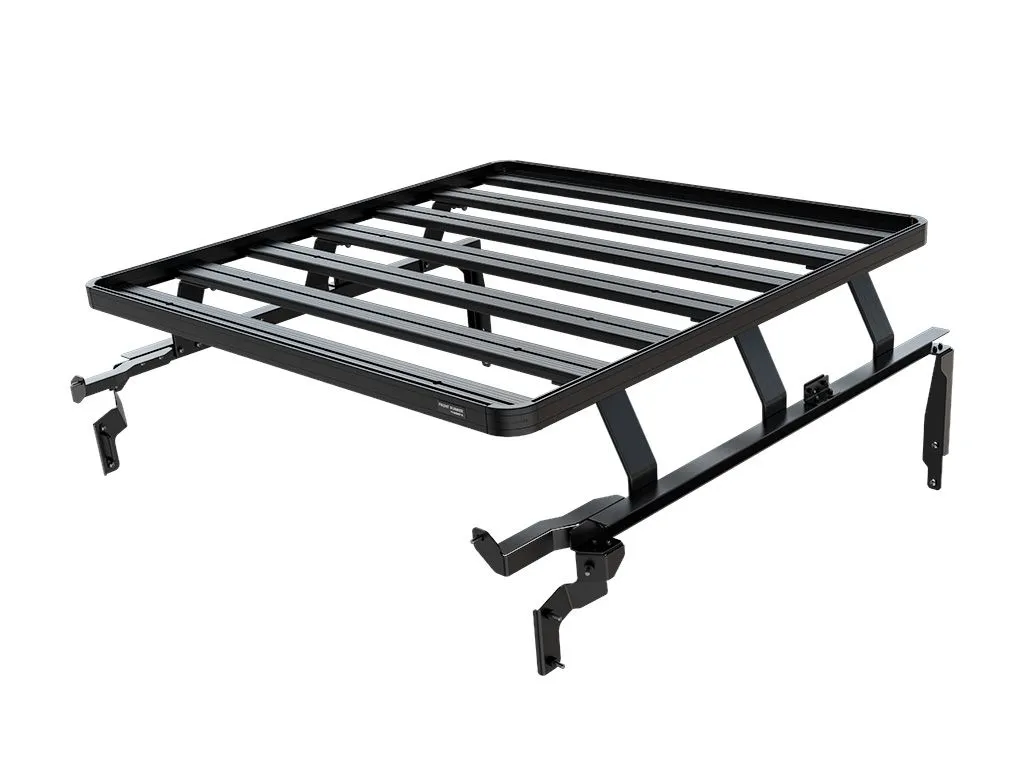

This kit creates a full-size rack that sits above your Ford Ranger Truck's load bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1345mm x 1358mm), 2 Load Bed Mounts, and 6 Pickup Legs that fit into the Load Bed Mounts.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Ford Ranger T6.2 comes standard with the OEM Roll Top, Ford Ranger T6.2 Wildtrak Double Cab w/OEM Roll Top (2022-Current) Slimline II Load Bed Rack Kit is available.

KRFR025T - Ford Ranger T6.2 (2022-Curr)SLII Load Bed Rack Kit

Consisting of:
3x LASS026 - Universal Load Bed Leg / Tall (Pair)
1x LASS046 - Ford Rngr T6.2 (22-Curr) Ld bd rck mount system
1x RRSTG07 - SLII Tray - 1345mm(W)X1358mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 33.7kg (74.3lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1720mm (68")
Height: 295mm (12")

Shipping Weight:
Weight: 39kg (86lbs)
