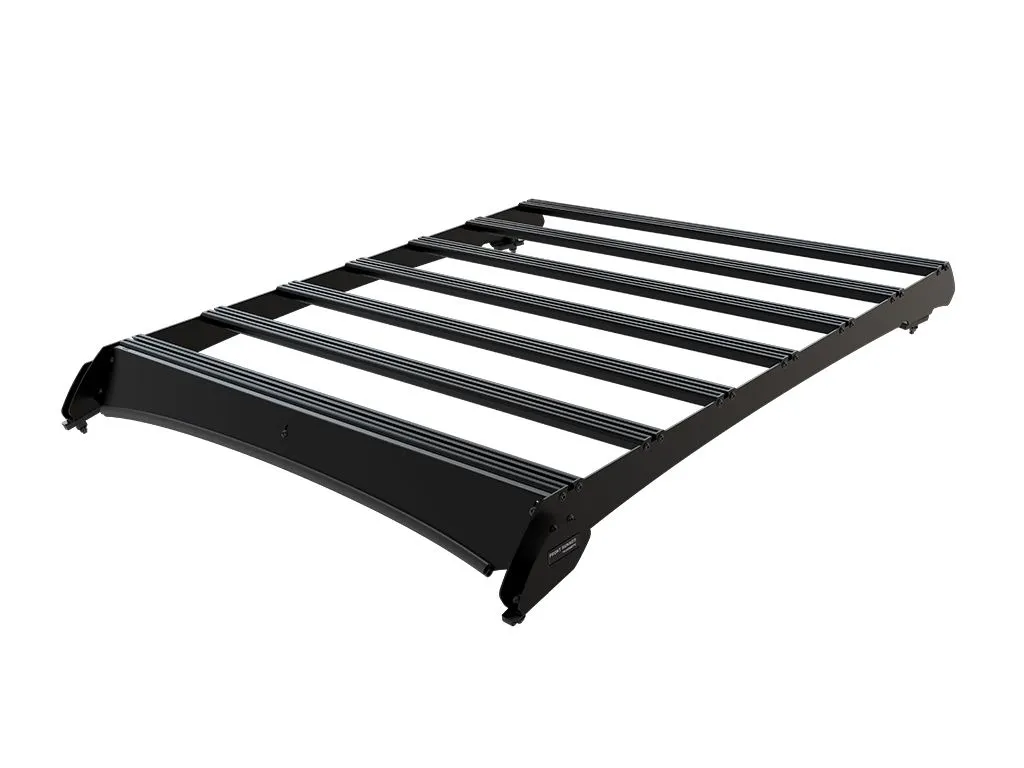

Ford Ranger T6.2 Wildtrak/Raptor Double Cab (2022-Current) Slimsport Roof Rack Kit

• This low-profile flat deck Slimsport rack has a load-carrying area of 1272mm (50") L x 1166mm (45.9") W.
• The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
• Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).
• The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
• Need a lightbar? The optional lightbar fairing Ford Ranger T6.2 (2022-Current)/Volkswagen Amarok (2023-Current) Double Cab Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
• Note: Drilling required for installation. No drilling is required for Wildtrak models.
• Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport Tray range.

KSFR009T - Ford Ranger T6.2 Wildtrak/Raptor Double Cab (2022-Current) Slimsport Roof Rack Kit

Consisting of:
1x KSFR006 - Ford Ranger T6.2(22+)/VW Amarok(23+)DC Ssport Tray
1x RRAC313 - Ford Ranger T6 Dbl Cab(22-Curr)SlmSprt WF

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Dimensions:
1448mm (57") L x 1233mm (48.5") W x 147mm (5.8")

Approximate Installed Weight: 21.95kg (48.39lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13")
Length: 1700mm (67")
Height: 225mm (9")

Shipping Weight:
Weight: 26kg (57lbs)
