Truck Canopy or Trailer Slimline II Rack Kit / 1425mm(W) X 752mm(L)

* For illustrative purposes only. Please refer to the specs tab for detailed information.

Truck Canopy or Trailer Slimline II Rack Kit / 1425mm(W) X 752mm(L)

Name: Truck Canopy or Trailer Slimline II Rack Kit / 1425mm(W) X 752mm(L)
Brand: Front Runner
SKU: KRCA053T
Price: 771.00 GBP
Availability: InStock

Front Runner

SKU: KRCA053T

£77100

£771.00

incl. 20% GB VAT & Import Duties. Excl. Shipping

FREE SHIPPING

WITHIN THE UK*

Buy now pay later

From £257.00 per month

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1425mm/56.1" (W) x 752mm/29.6" (L). The Slimline II Tray mounts to four (4) supplied Feet that slide in to the supplied Track. The 750mm/29.5” long pair of tracks can be easily mounted to your canopy/shell or trailer.

See the Track installation instructions in the INSTALL tab for further details.

In stock, ships in 5-8 working days from Germany

Proven gear and advice

You can trust

14 day money back

Guarantee

Built off-road

Tough

Info

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1425mm/56.1" (W) x 752mm/29.6" (L). The Slimline II Tray mounts to four (4) supplied Feet that slide in to the supplied Track. The 750mm/29.5” long pair of tracks can be easily mounted to your canopy/shell or trailer.See the Track installation instructions in the INSTALL tab for further details.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

* Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

Specs

KRCA053T - Truck Canopy or Trailer Slimline II Rack Kit / 1425mm(W) X 752mm(L) - by Front Runner

Consisting of:

2x FASS024 - Foot Set / 50mm - 60mm
1x RRSTJ04 - SLII Tray - 1425mm(W)X752mm(L)
1x TRCA005 - Canopy Tracks / 750mm(L)

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 18.53kg (40.85lbs)

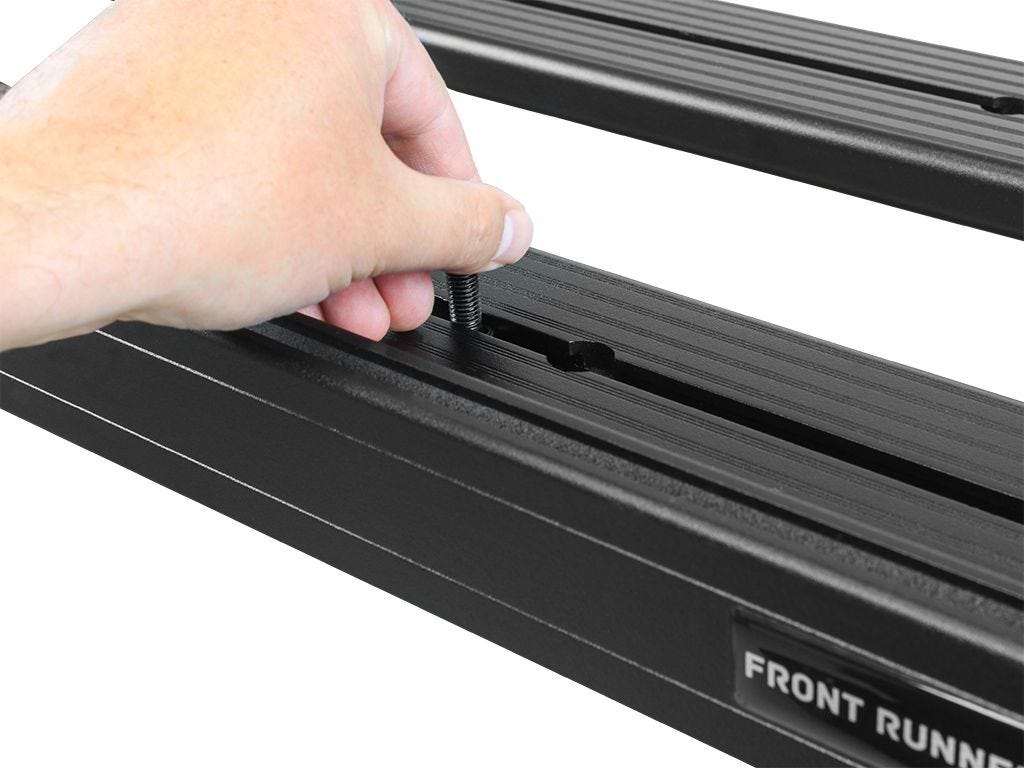

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

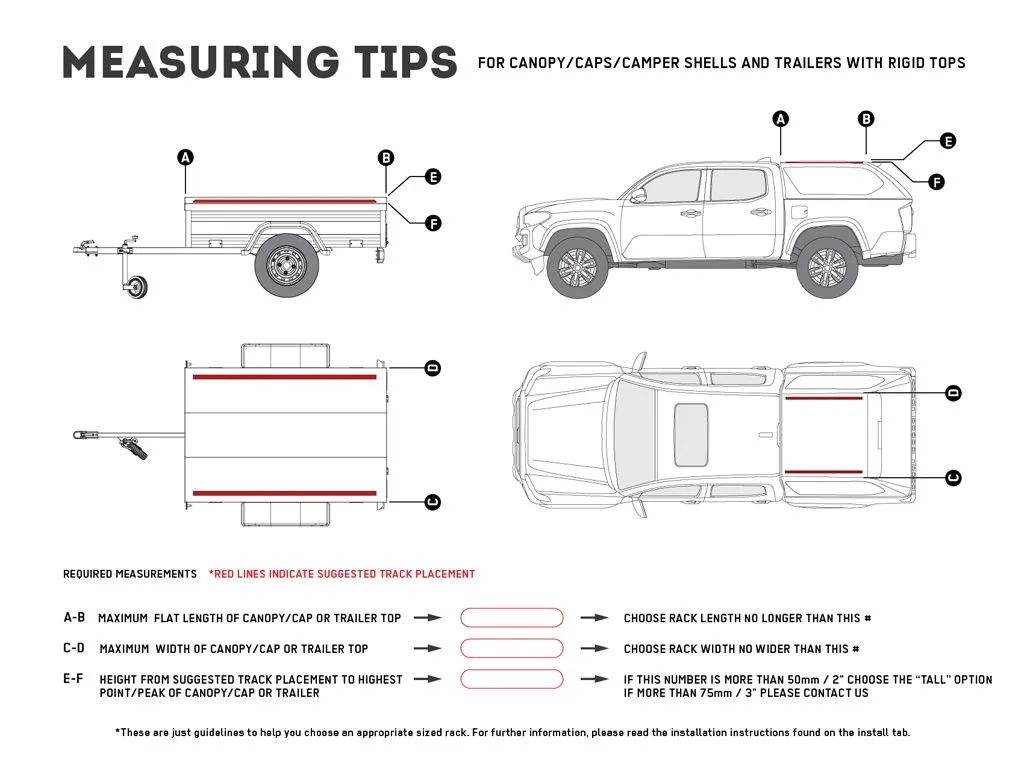

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 440mm (17")

Length: 1730mm (68")

Height: 270mm (11")

Shipping Weight:

Weight: 24.4kg (54lbs)

Install

Installation Instructions for FASS024 (EN)
