RSI Double Cab Smart Canopy Slimline II Rack Kit / 1165mm(W) x 1358mm(L)

This kit creates a full size rack on a RSI Canopy with a roof top size of approximately 1165mm/45.9" (W) x 1358mm/53.5" (L). The Slimline II Tray mounts to supplied Feet that slide in to the canopy track.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: This Kit does not fit Volkswagen Amarok Double Cab Canopies. Please use .

* Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

KRCA008T - RSI Double Cab Smart Canopy Slimline II Rack Kit / 1165mm(W) x 1358mm(L) - by Front Runner

Consisting of:

3 x FASS024 - Foot Set / 50mm-60mm - by Front Runner
3 x RRAC921 - Canopy Rack Kit Installation Set
1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 23.3kg (51.4lbs)

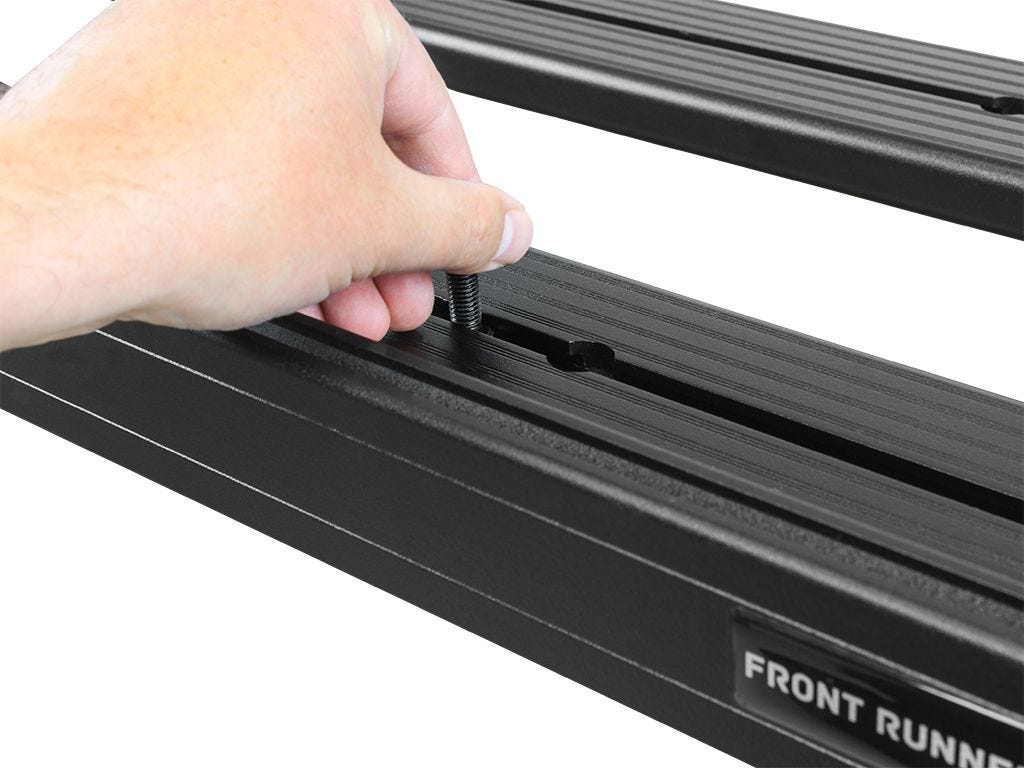

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 450mm (18.0")
Length: 1615mm (64.0")
Height: 140mm (6.0")

Shipping Weight:
23.1kg (51.0lbs)
