Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / 1255mm(W) X 1156mm(L)

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1255mm/49.4" (W) x 1156mm/45.5" (L). The Slimline II Tray and four (4) supplied Feet mount onto the OEM/Factory installed track of your canopy/shell or trailer.NOTE: Additional fasteners may be required to fit OEM/Factory supplied tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

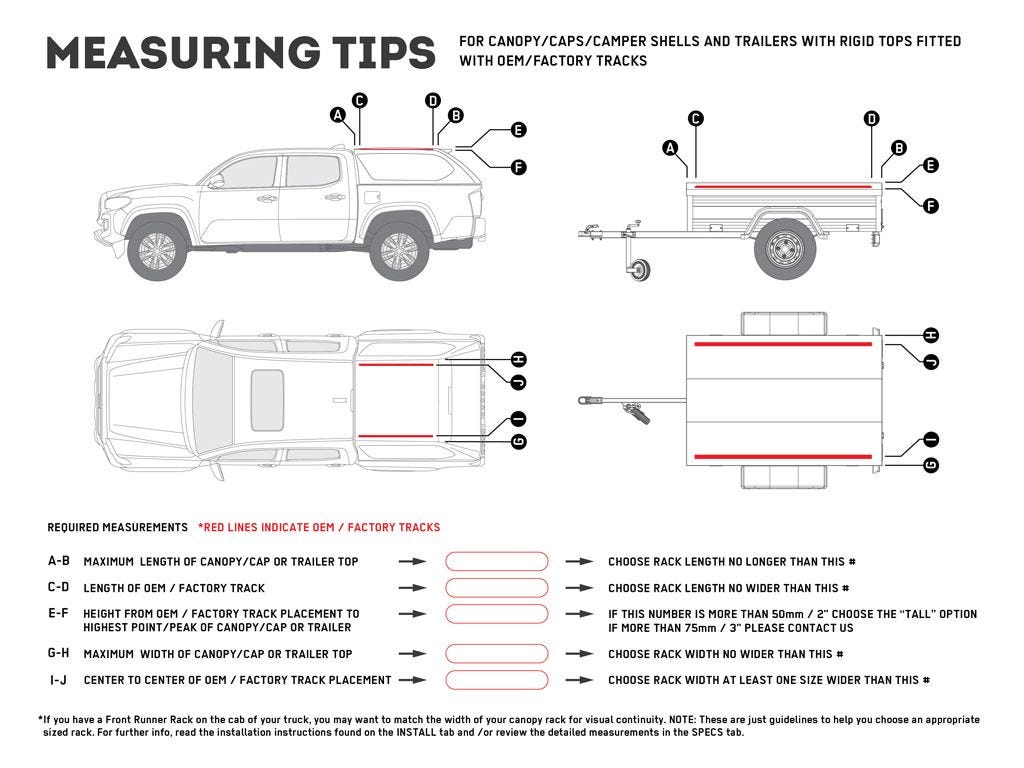

In order for Front Runner Feet and supplied hardware to work with your OEM/Factory supplied canopy track, the track must have:

• Slot base width min 20mm / max 25mm
• Slot base height min 6.5mm / max 10mm
• Slot opening width min 8.5mm / max 10.5mm
• Slot opening height min 2mm / max 5mm

**Please check with canopy manufacturer regarding the load ratings for your specific canopy and track.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consisting of:

2 x FASS024 - Foot Set / 50mm-60mm - by Front Runner
1 x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L) - by Front Runner

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 19kg (42lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

Width 1255mm (49")
Length 1156mm (46")
Height 50mm (2")

Weight 22.1kg (48.5lbs)
