Pickup Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1358(L)

* For illustrative purposes only. Please refer to the specs tab for detailed information.

Pickup Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1358(L)

Name: Pickup Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1358(L)
Brand: Front Runner
SKU: KRRT013T
Price: 1299.00 EUR
Availability: InStock

Front Runner

SKU: KRRT013T

€1,29900

€1,299.00

incl. 19% DE VAT, excl. Shipping

FREE SHIPPING

WITHIN THE EU*

Buy now pay later

From €60.00 per month

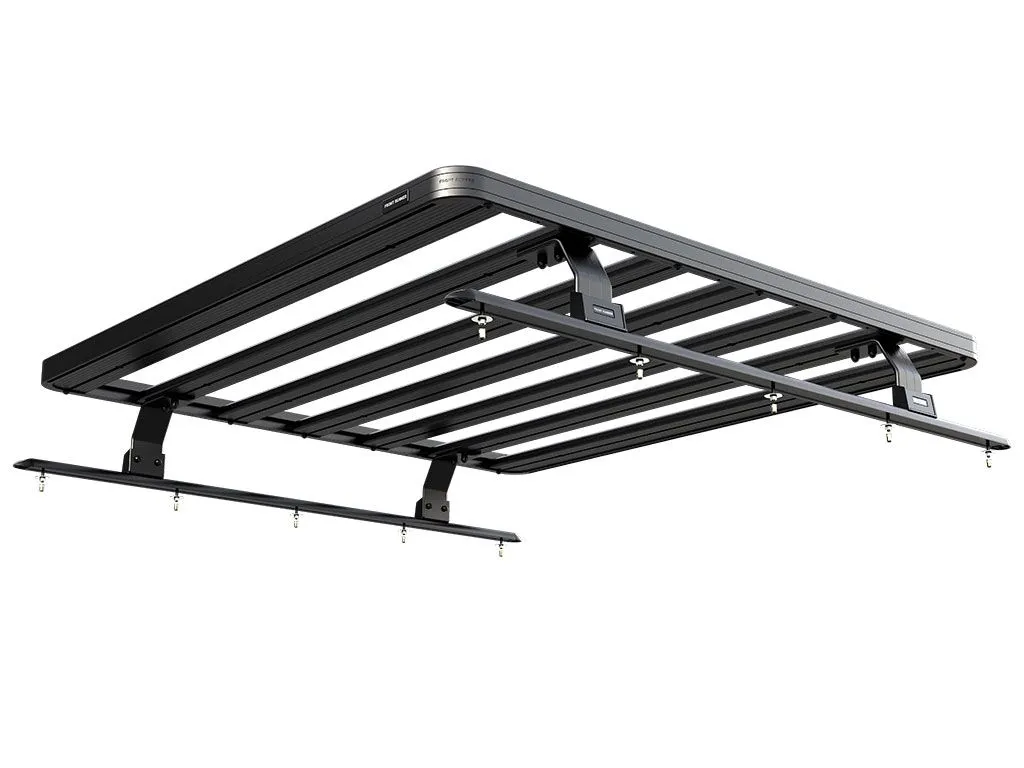

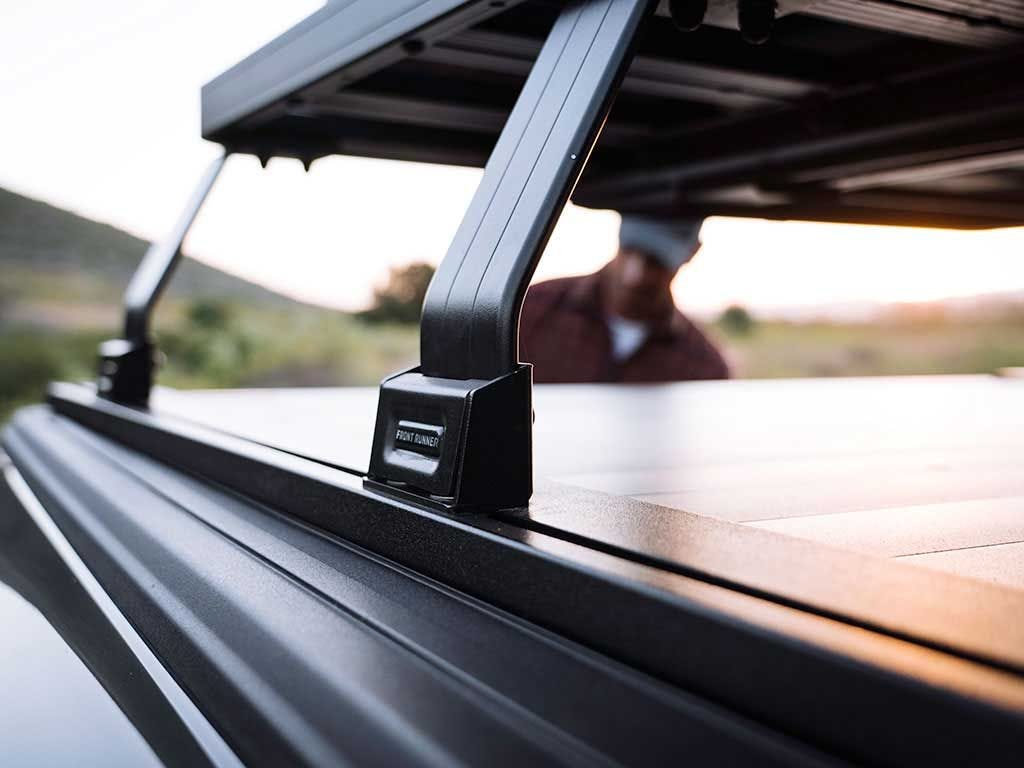

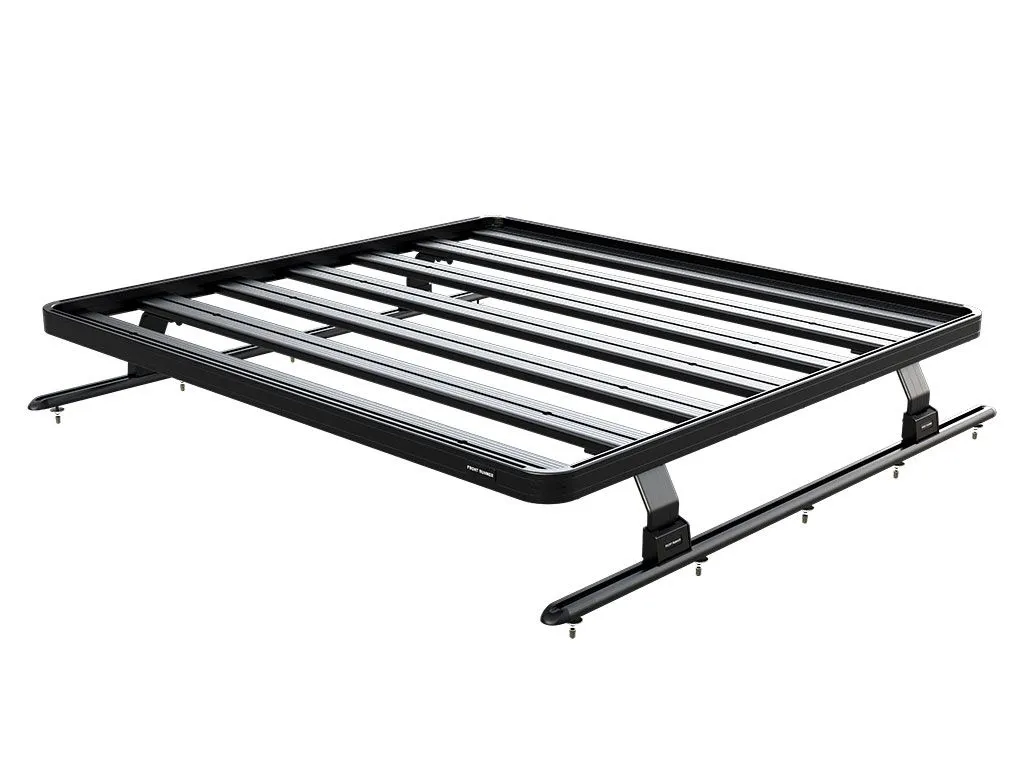

This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks and 4 Pickup Roll Top Leg Mounts that fit into the Tracks.

Our Pickup Roll Top Truck Bed Racks Are Modular, Lightweight, Strong & Come With A Lifetime Warranty. More Than 55 Rack Accessories.

In stock, ships in 3-4 working days

Proven gear and advice

You can trust

14 day money back

Guarantee

Built off-road

Tough

Info

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details.

Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

* Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

Specs

KRRT013T - Bakkie Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1358(L) - by Front Runner

Consisting of:

2x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
1x TRCA009 - Canopy Tracks / 1400mm (L)

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 30.38kg (66.98lbs)

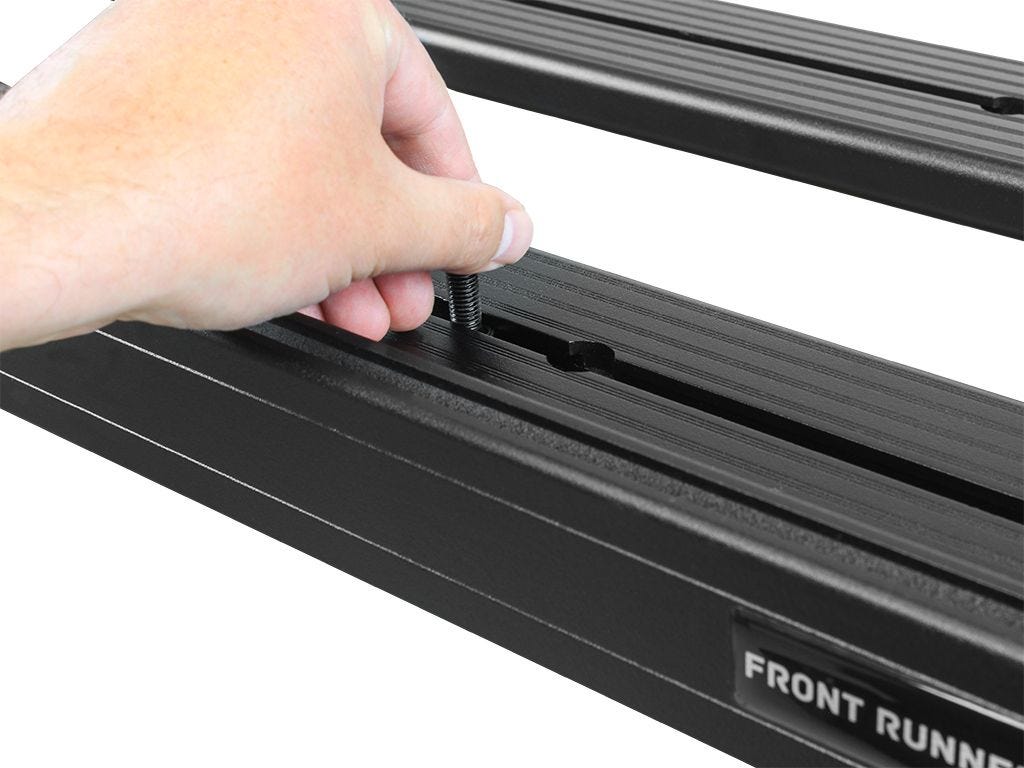

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 455mm (18")

Length: 1730mm (68")

Height: 235mm (9")

Shipping Weight:

Weight: 30.52kg (67lbs)

Install

Installation Instructions for LASS028 (EN)
