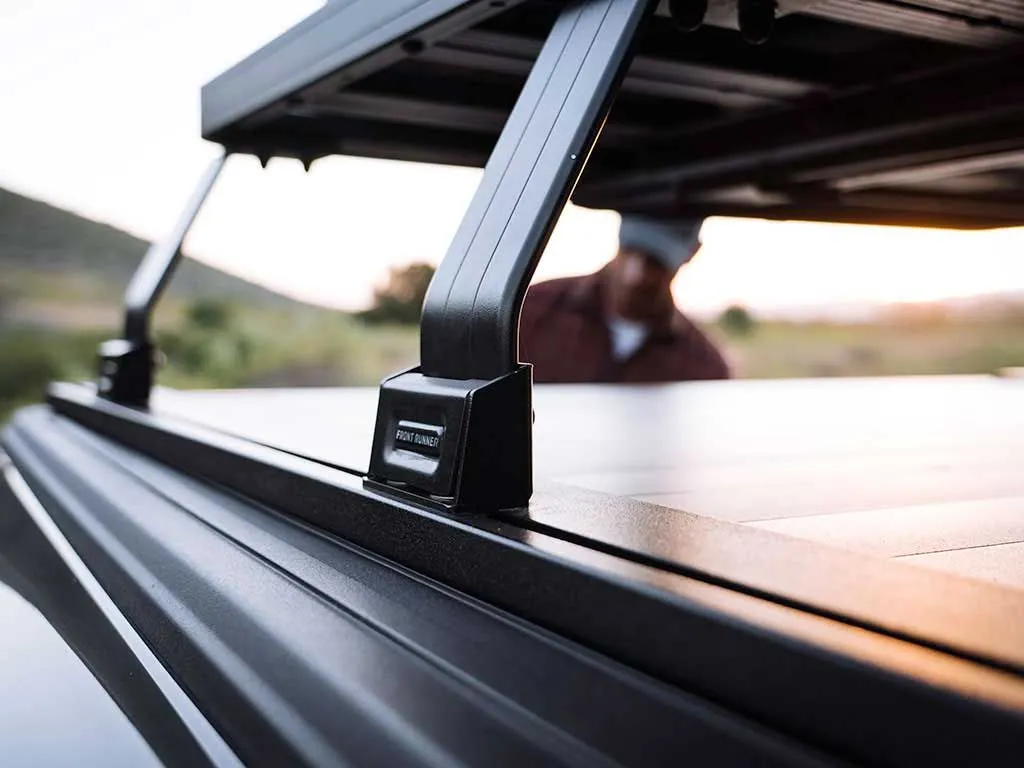

Ford Ranger Raptor w/Securi Lid (2020-2022) Slimline II Load Bed Rack Kit

This 1358mm/53.5" long, full-size, Slimline II cargo carrying roof rack kit for the Ford Ranger Raptor w/Securi Lid contains a Slimline II Tray, Wind Deflector and 6 Feet. Installs easily into the existing factory/OEM roof tracks with no drilling required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

* Note: A maximum driving speed of 130km/80mi per hour should be adhered to, when equipped with a Front Runner Roof Rack or Load Bar kit.

KRRT034T - Ford Ranger Raptor w/Securi Lid (2020-2022) Slimline II Load Bed Rack Kit - by Front Runner

Consisting of:
3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTM07 - SLII Tray - 1475mm(W)X1358mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 29.77kg (65.63lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 250mm (10")

Shipping Weight:
Weight: 29.4kg (65lbs)
